演示 | 高密度、雙轉換線上電源保護,具有可擴展的運行時間。 |
---|---|
主輸入電壓 | 230 V 400 V 3 相 |
---|---|
其他輸入電壓 | 220V 240V 380V 415V |
主輸出電壓 | 230 V |
其他輸出電壓 | 220V 240V |
額定功率(W) | 8000 W |
額定功率(VA) | 8000 VA |

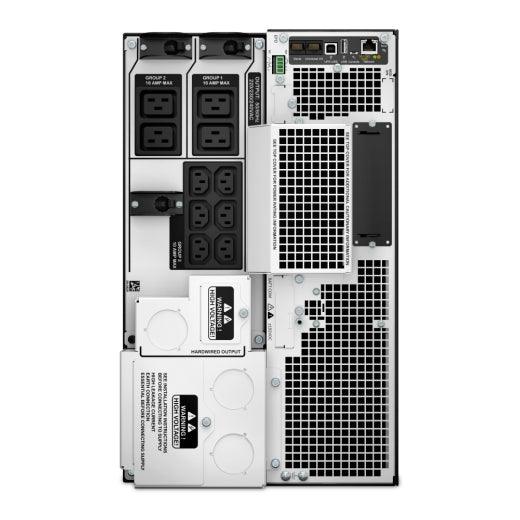

輸出連接類型 | 6 IEC 60320 C13 3 IEC 跳線 4 IEC 60320 C19 |
輸出連接器類型 | 硬線 3 線 (H N + E) 1 |
電池型 | 鉛酸電池 |
提供的設備 | 含軟體 CD 文件 CD 安裝指南 溫度探頭 USB 電纜 保固卡 Web/SNMP> 管理卡 保固卡 Web/SNMP> 管理卡 保固卡 Web/SNMP> 管理卡 |
產品網路子系列 | 高密度 |
---|---|
電源模組空閒槽位數 | 0 |
電源模組填滿槽位數 | 0 |
冗餘 | 否 |
顏色 | 黑色 |
---|---|
高度 | 43.2 公分 |
寬度 | 26.3 公分 |
深度 | 71.5 公分 |
淨重 | 111.82 公斤 |
安裝位置 | 前 |
安裝首選項 | 無偏好 |
安裝模式 | 透過套件安裝在機架上 |
可安裝兩柱 | 0 |
USB 相容 | 是 |
網路頻率 | 40...70 Hz 自動感應 |
---|---|
輸入連接器數量 | 1 根硬線 3 線 (1P + N + E) 1 根硬線 5 線 (3P + N + E) |
輸入電壓限制 | 100...275 V 可調(半負載) 173...476 V 可調(半負載) |
最大可配置功率(W) | 8000 W |
---|---|
諧波失真 | 小於 2 % |
輸出頻率 | 50/60 Hz +/- 3 Hz 與電源同步 |
波峰因數 | 3 : 1 |
UPS 類型 | 線上雙轉換 |
波浪類型 | 正弦波 |
旁路類型 | 內部旁路(自動和手動) |
最大可配置功率(VA) | 8000 VA |
產品認證 | CE EAC IRAM RCM VDE |
---|---|
標記 | CE 標誌 |
標準 | EN/IEC 62040-1:2019/A11:2021 EN/IEC 62040-2:2006/AC:2006 EN/IEC 62040-8 |
運轉環境空氣溫度 | 0…40 °C |
---|---|
相對濕度 | 0…95 % 非冷凝 |
工作高度 | 0...10000 英尺 |
儲存環境空氣溫度 | -15…45 °C |
儲存相對濕度 | 0…95 % 非冷凝 |
儲存海拔高度 | 0.00…15240.00 公尺 |
聲級 | 55 dBA |
散熱 | 1497 Btu/小時 |
IP 防護等級 | IP20 |
電池已充滿的插槽數量 | 0 |
---|---|
電池充電時間 | 1。5 小時 |
電池更換數量 | 2 |
電池電壓 | +/- 192 V(分離電池以中性線為基準) |
電池充電器功率 | 876 W 額定值 |
電池電量(VAH) | 1728 VAh 運轉時間 |
電池壽命 | 3…5 年 |
電池選項 | SRT192BP2 1 3456 VAh SRT192BP2 2 5184 VAh SRT192BP2 3 6912 VAh SRT192BP2 6 12096 VAh SRT192BP2 8 15552 VAh SRT192BP2 10 19008 VAh |
延長運轉時間 | 1 |
空閒插槽 | 1 |
---|---|
警報 | 聲音與可見警報:以嚴重性劃分優先級 |
緊急斷電 | 是 |
突波能量率 | 480 J |
---|
包裝 1 的單位類型 | PCE |
---|---|
包裝 1 中的單位數量 | 1 |
封裝 1 高度 | 46.1 公分 |
封裝 1 寬度 | 60 公分 |
封裝 1 長度 | 100 公分 |
包裹 1 重量 | 126.82 公斤 |
保固 | 3 年維修或更換(不含電池)和 2 年電池 |
---|
