(<tc>全新行货</tc>) SuperMicro SYS-420GP-TNR

2,500+ Verified Reviews!

(全新行货) SuperMicro SYS-420GP-TNR

HKD 0.00
% OFF

主要应用

  • 高性能计算
  • 渲染
  • 虚拟桌面基础架构
  • 人工智能/深度学习训练

主要特点

  1. 双插槽 P+ (LGA-4189) 第三代英特尔® 至强® 可扩展处理器
  2. 英特尔® C621A 芯片组
  3. 32 个 DIMM 插槽；高达 8 TB DRAM；高达 8 TB 英特尔® 傲腾™ 持久内存（带 DRAM 最高可达 12 TB）；3200/2933/2666 ECC DDR4 LRDIMM；RDIMM；英特尔® 傲腾™ 持久内存 200 系列
    • AIOM/OCP 3.0 支持
    • 12 个 PCIe Gen 4.0 X16 FHFL 插槽
  5. 灵活的网络选项
    • 总共 24 个 2.5 英寸热插拔驱动器托架

Key Features

Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors

Intel® C621A Chipset

32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4
LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series

AIOM/OCP 3.0 Support 12 PCIe Gen 4.0 X16 FHFL Slots

Flexible networking options

Total 24x 2.5" Hot-swap drive bays

8x HOT SWAP 2.5” NVMe
8x HOT SWAP 2.5” SATA
8x HOT SWAP 2.5” SATA/SAS (AOC required)
2x M.2 NVMe for boot drive only

8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control

4x 2000W redundant Titanium level power supplies

Technical Specifications

  • Technical Specifications

Product SKUs

SuperServer SYS-420GP-TNR
Title

Motherboard

Operating Environment
Title

Processor

CPU

  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors

Core Count

  • Up to 40C/80T; Up to 60MB Cache per CPU

Note

  • Supports up to 270W TDP CPUs (Air Cooled)
Title

GPU

Max GPU Count

  • Up to 10 double-width or 10 single-width GPUs

Supported GPU

  • NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A40, A30, A16, A2, A100, A10
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options

CPU-GPU Interconnect

  • PCIe 4.0 x16 Switch Dual-Root

GPU-GPU Interconnect

  • NVIDIA® NVLink® Bridge (optional)

Certification

  • NVIDIA certified
Title

System Memory

Memory

  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series

Memory Voltage

  • 1.2V
Title

On-Board Devices

SATA

  • SATA (6Gbps) ; RAID 0/1/5/10 support

Chipset

  • Intel® C621A

Network Connectivity

  • 2 RJ45 1GbE with Intel® I350
Title

Input / Output

Video

  • 1 VGA port
Title

System BIOS

BIOS Type

  • AMI 32MB SPI Flash EEPROM
Title
Title

Security

Hardware

  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant

Features

  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
Title

PC Health Monitoring

CPU

  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator

FAN

  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors

Temperature

  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Title

Chassis

Form Factor

  • 4U Rackmount

Model

  • CSE-418G2TS-R4016BP
Title

Dimensions and Weight

Height

  • 7" (178 mm)

Width

  • 17.2" (437 mm)

Depth

  • 29" (737 mm)

Package

  • 26.57" (H) x 27" (W) x 41" (D)

Weight

  • Gross Weight: 100 lbs (45.3 kg)
  • Net Weight: 65.5 lbs (29.7 kg)

Available Color

  • Black Front & Silver Body
Title

Expansion Slots

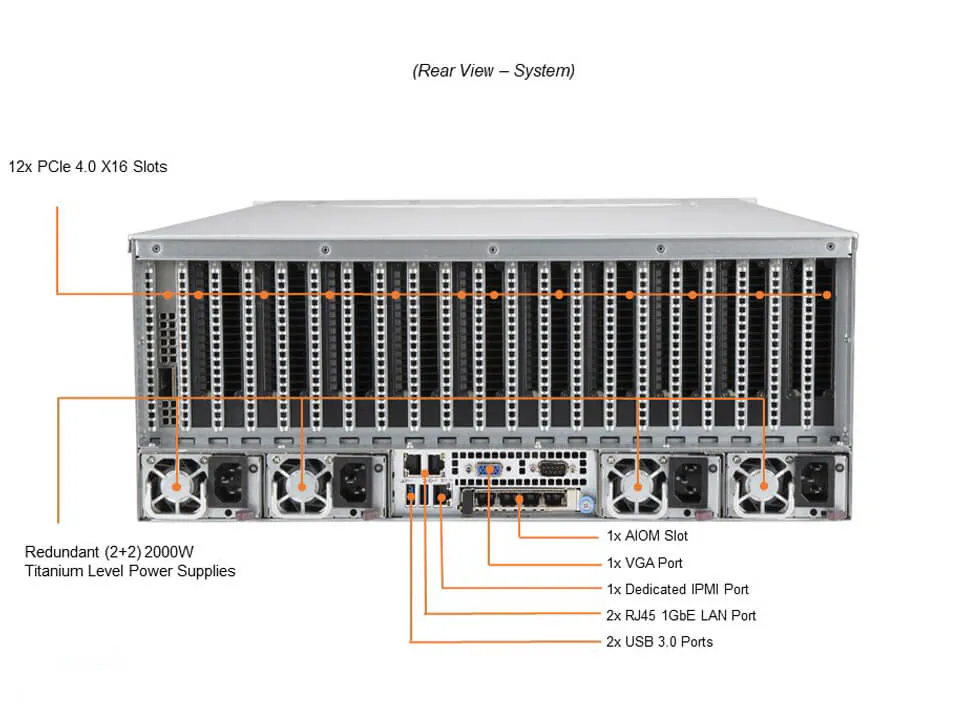

PCI-Express (PCIe) Configuration

  • Default
    • 12 PCIe 4.0 x16 FHFL slots
Title

Drive Bays / Storage

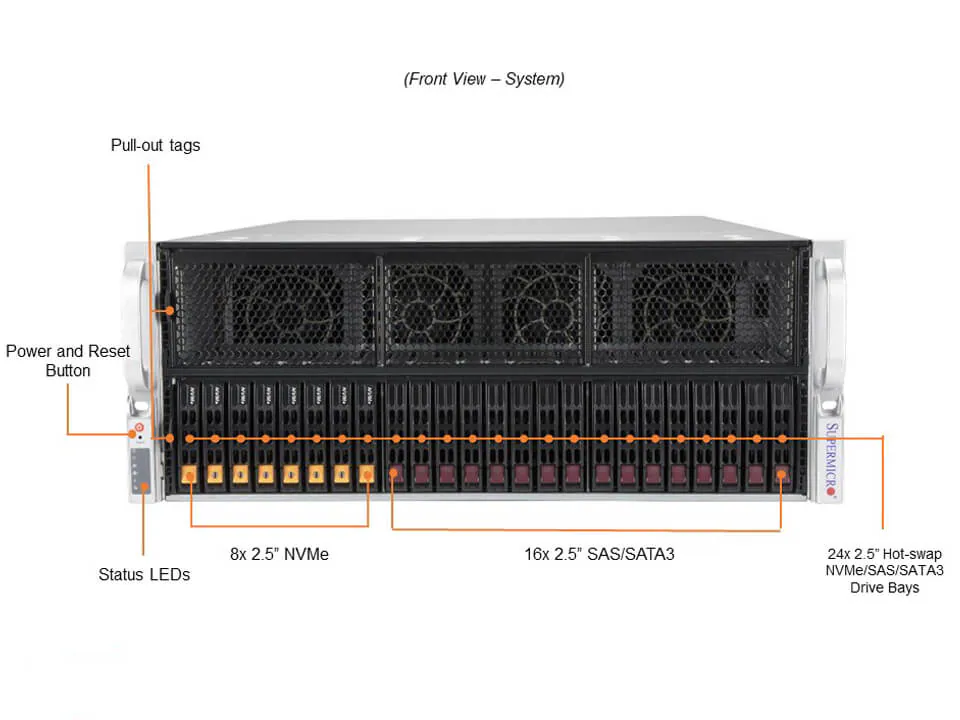

Drive Bays Configuration

  • Default: Total 24 bays
    • 8 front hot-swap 2.5" NVMe drive bays
    • 16 front hot-swap 2.5" SAS/SATA drive bays
  • Option A: Total 24 bays
    • 24 front hot-swap 2.5" NVMe*/SAS/SATA drive bays
  • (*NVMe support may require additional storage controller and/or cables, please see the optional parts list for details)

M.2

  • 2 M.2 NVMe/SATA slots (M-key)
Title

System Cooling

Fans

  • 8 heavy duty fans with optimal fan speed control
Title

Power Supply

4x 2000W Redundant Titanium Level (96%) power supplies

Dimension (WxHxL)

73.5 x 40 x 203 mm

Input

1000W: 100-127Vac
1000W: 100-127Vac / 50-60Hz
1800W: 200-220Vac
1800W: 200-220Vac / 50-60Hz
1980W: 220-230Vac
1980W: 220-230Vac / 50-60Hz
2000W: 220-240Vac
2000W: 220-240Vac / 50-60Hz (for UL only)
2000W: 230-240Vdc
2000W: 230-240Vac
2000W: 230-240Vac / 50-60Hz
2000W: 230-240Vdc / 50-60Hz (for China only)

+12V

Max: 83A / Min: 0A (100Vac-127Vac)
Max: 150A / Min: 0A (200Vac-220Vac)
Max: 165A / Min: 0A (220Vac-230Vac)
Max: 166A / Min: 0A (230Vac-240Vac)

12V SB

Max: 3.5A / Min: 0A
Max: 3.5A

Output Type

Backplanes (gold finger)
Title

Operating Environment

Environmental Spec.

  • Operating Temperature: 10°C ~ 35°C (50°F ~ 95°F)
  • Non-operating Temperature: -40°C to 60°C (-40°F to 140°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5% to 95% (non-condensing)
