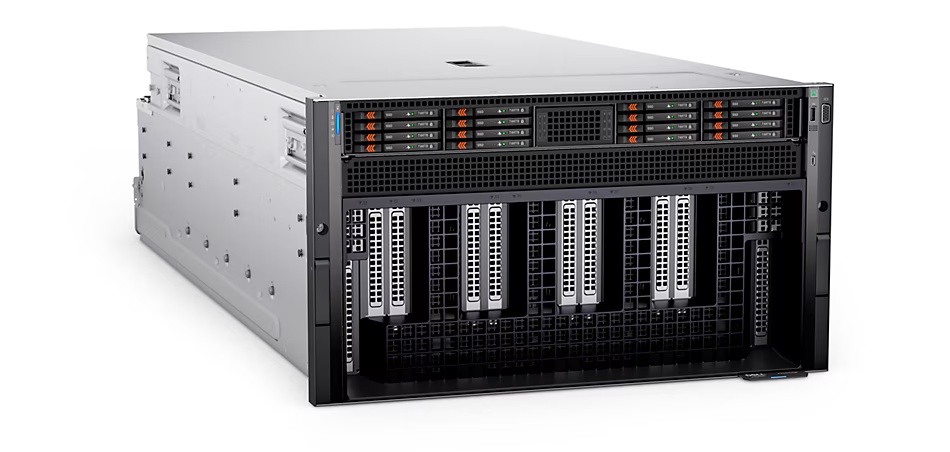

(全新行货) 戴尔 PowerEdge XE9680

Name: ( 全新行货 ) 戴尔 PowerEdge XE9680
Brand: DELL
Availability: InStock

HKD 0.00

% OFF

Dell PowerEdge XE9680：释放无与伦比的性能

体验计算的未来 戴尔 PowerEdge XE9680。这款功能强大的服务器旨在满足当今数据密集型应用程序的需求，是寻求提高效率和可靠性的企业的理想选择。

主要特点：

尖端性能： XE9680 搭载最新的英特尔处理器，可提供卓越的性能来处理最耗资源的任务。
可扩展性： 轻松扩展您的系统以适应增长，确保您的基础设施能够随着您的业务需求而发展。
强大的安全性： 使用专为防范威胁而设计的高级安全功能保护您的关键数据。
高效冷却： 采用创新的冷却技术，即使在繁重的工作负载下也能保持最佳性能和可靠性。
用户友好管理： 使用直观的工具简化服务器管理，使监控和维护毫不费力。

为什么选择 Dell PowerEdge XE9680？

这 戴尔 PowerEdge XE9680 不仅仅是一台服务器；它还是一套全面的解决方案，可帮助您的业务在竞争环境中蓬勃发展。该服务器结合了卓越的性能、可扩展性和强大的功能，是寻求最大限度提高运营效率的组织的理想之选。

探索戴尔的强大功能，并通过以下方式提升您的 IT 基础架构 PowerEdge XE9680 今天！

Tech Specs & Customisation

Processor

Two 5th Generation Intel^® Xeon^®Scalable processors with up to 64 cores per processor
Two 4th Generation Intel^® Xeon^® Scalable processors with up to 56 cores per processor

Operating System

Canonical^® Ubuntu^® Server LTS
Red Hat^® Enterprise Linux
SUSE Linux Enterprise Server
VMware ESXi

Chipset

Intel^® C741 chipset

Accelerators

8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or,
8 NVIDIA HGX H200 141GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or,
8 AMD Instinct MI300X 192GB 750W OAM accelerator with AMD Infinity Fabric connectivity,
8 Intel Gaudi3 128GB 900W OAM accelerator with embedded RoCE ports for ethernet connectivity

Memory

DIMM Speed
Up to 5600 MT/s on the 5th Generation Intel^® Xeon^® Scalable processors
Up to 4800 MT/s on the 4th Generation Intel^® Xeon^® Scalable processors

Memory Type
RDIMM

Memory Module Slots
32 DDR5 DIMM slots

Maximum RAM
RDIMM 4 TB max

Storage

Front Bays
Up to 8 x 2.5-inch NVMe/SAS/SATA SSD drives max 122.88 TB
Up to 16 x E3.S NVMe direct drives max 122.88 TB
Note: Only 8 x 2.5-inch NVMe SSD drives are supported with Intel Gaudi3.

Storage Controllers

Internal Controllers
PERC H965i (Not supported with Intel Gaudi3)
Internal Boot
Boot Optimized Storage Subsystem (NVMe BOSS-N1): HWRAID 1, 2 x M.2 SSDs

Security

Cryptographically signed firmware
Data at Rest Encryption (SEDs with local or external key mgmt)
Secure Boot
Secured Component Verification (Hardware integrity check)
Secure Erase
Silicon Root of Trust
System Lockdown (requires iDRAC9 Enterprise or Datacenter)
TPM 2.0 FIPS, CC-TCG certified, TPM 2.0 China NationZ

Management

Embedded / At-the-Server
iDRAC9
iDRAC Direct
iDRAC RESTful API with Redfish
iDRAC Service Module

Consoles
CloudIQ for PowerEdge plug in
OpenManage Enterprise
OpenManage Power Manager plugin
OpenManage Service plugin
OpenManage Update Manager plugin

Tools
Dell System Update
Dell Repository Manager
Enterprise Catalogs
iDRAC RESTful API with Redfish
IPMI
RACADM CLI

OpenManage Integrations
BMC Truesight
OpenManage Integration with ServiceNow

Power Supplies

2800W Titanium 200-240 VAC or 240 VDC redundant, hot swap

Fans
Up to 6 High performance (HPR) gold grade fans installed in mid tray
Up to ten high performance (HPR) gold grade fans installed on the rear of the system (up to 12 fans with Intel Gaudi3)
All are hot swap fans

Embedded OSFP
6 x 800 Gb (available only with Intel Gaudi3)

Ports

Network Options
1 x OCP 3.0 (optional)
2 x 1GbE LOM (optional)

Front Ports
1 x iDRAC Direct (Micro-AB USB) port
1 x USB 2.0
1 x VGA

Rear Ports
1 x USB 2.0
1 x USB 3.0
1 x VGA
1 x RJ45 iDRAC9 ethernet port

Slots

PCIe

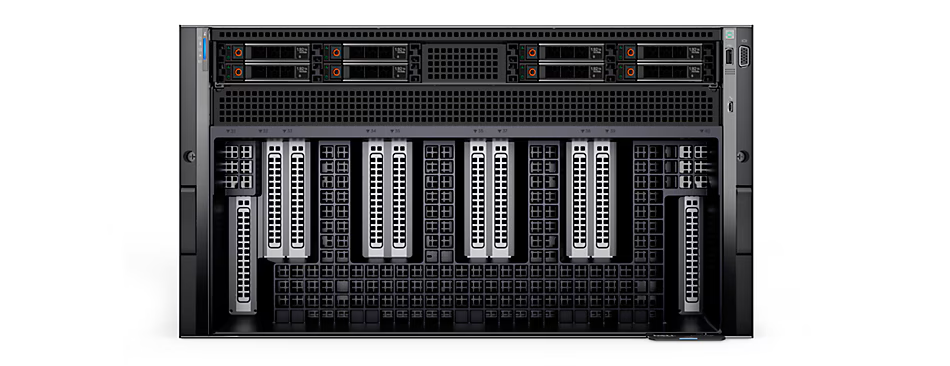

Up to 10 x16 Gen5 (x16 PCIe) full-height, half-length (8 PCIe slots with Intel Gaudi3)

Bezel

Optional LCD bezel or security bezel

Form Factor

6U rack server

Dimensions & Weight

Height
10.36 in. (263.20 mm)

Width
18.97 in. (482.00 mm)

Depth
39.71 in. (1008.77 mm) with bezel
39.17 in. (995.00 mm) without bezel

Weight
up to 114.05 kg (251.44 lbs.)

Innovate where you never thought possible

Deploy massive compute anywhere with the latest family of powerful, secure servers engineered to accelerate automation and innovation.

No-compromise accelerated AI

Rapidly develop, train and deploy large machine learning models with this high-performance application server designed for HPC super computing clusters and the largest data sets for AI, used for large scale natural language processing, recommendation engines and neural network applications.

Powerful and flexible

Drive fastest-time-to-value and no-compromise AI acceleration with Intel CPUs NVIDIA GPUs and next generation technology for memory, storage and expansion to achieve the highest performance.

Break through boundaries with two 4th generation Intel^® Xeon® processors and eight GPUs
Flexibility to choose 8 NVIDIA HGX H100 80GB 700W SXM5 GPUs, fully interconnected with NVIDIA NVLink technology or, 8 AMD Instinct MI300X accelerators fully interconnected with AMD Infinity fabric
Operate air-cooled (up to 35°C) with improved energy efficiency from Dell Smart Cooling technology

Scale seamlessly and securely

Deploy and enable AI business-wide and for all your AI initiatives with powerful features and capabilities, using the latest technology.

Scale up your needs supporting up to 32 DDR5 memory DIMM slots, up to 8 U.2 drives and up to 10 front facing PCIe Gen 5 expansion slots
Deploy AI operations confidently with built-in platform security features, even before the server is built, including Secured Component Verification and Silicon Root of Trust
Manage your AI operations efficiently and consistently with full iDRAC compliance and Open Management Enterprise (OME) support for all PowerEdge servers

Systems management and security solutions

OpenManage systems management

Tame the complexity of your IT environment with Dell Technologies OpenManage systems management portfolio which uses tools and solutions to discover, deploy, monitor, manage, update and secure your PowerEdge infrastructure.

Intelligent automation

Integrate tools across your portfolio with PowerEdge iDRAC, OpenManage Enterprise and CloudIQ solutions that help organisations automate their server lifecycles, optimise operations and scale efficiently.

Built-in security

Stay protected at every phase of the product lifecycle with the PowerEdge cyber resilient architecture that helps accelerate your adoption of a Zero Trust security strategy. From the silicon root of trust, secured component verification, signed firmware and drift detection to BIOS recovery and dynamic system lockdown, you can rest assured that your servers are secure.
