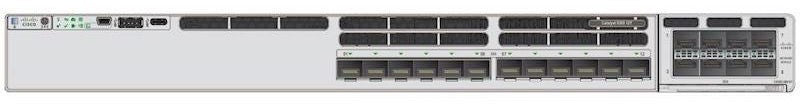

C9300X-12Y-A Specifications
|
|
General
|
|
Device Type
|
Switch - 12 ports - L3 - managed - stackable
|
|
Enclosure Type
|
Rack-mountable 1U
|
|
Subtype
|
25 Gigabit Ethernet
|
|
Ports
|
12 x 1/10/25 Gigabit SFP28
|
|
Performance
|
Switching capacity: 1000 Gbps
Switching capacity with stacking: 2000 Gbps
Forwarding rate: 744.04 Mpps
Forwarding rate with stacking: 1488 Mpps
|
|
Capacity
|
IPv4 routing table entries: 39000
Flexible NetFlow entries: 64000
Direct IPv4 routes: 24000
Indirect IPv4 routes: 15000
IPv6 routing table entries: 19500
VLAN IDs: 4094
Switched virtual interfaces (SVIs): 1000
Multicast routing flow table: 8000
QoS scale entries: 4000
ACL scale entries: 5000
PVST instances: 300
STP Virtual Ports for PVST: 13000
STP Virtual Ports for MST: 13000
Routed ports: 448
|
|
MAC Address Table Size
|
32000 entries
|
|
Jumbo Frame Support
|
9198 bytes
|
|
Routing Protocol
|
OSPF, IS-IS, RIP-1, RIP-2, IGMP, VRRP, PIM-SM, OSPFv3, PIM-SSM, policy-based routing (PBR), RIPng
|
|
Remote Management Protocol
|
SNMP 1, RMON 1, RMON 2, SNMP 3, SNMP 2c, CLI, NETCONF, RESTCONF
|
|
Features
|
DHCP support, trunking, Syslog support, full duplex mode, Stateful switchover (SSO), Class-Based Weighted Fair Queuing (CBWFQ), Weighted Random Early Detection (WRED), Spanning Tree Protocol (STP) support, Access Control List (ACL) support, Quality of Service (QoS), Non-Stop Routing (NSR), Remote Switch Port Analyzer (RSPAN), Management Information Base (MIB), Cisco StackWise-480 technology, Cisco StackPower technology, Flexible NetFlow (FNF), Multicast Source Discovery Protocol (MSDP), 802.1x authentication, 16MB packet buffer, FTP client, MACsec support, 3 fans, Control plane protection (CoPP), Virtual Extensible LAN (VXLAN), Application Visibility and Control (AVC), Source-Specific Multicast (SSM), integrated Wireshark, VLAN Double Tagging (Q-in-Q), Ethernet over MPLS (EoMPLS), Hierarchical Virtual Private LAN Service (H-VPLS), Private VLAN, Layer 3 VPN (L3VPN) support, Encapsulated Remote SPAN (ERSPAN), Security Group Tag (SGT) caching, Security Group Access Control List (SGACL), IT Service Management (ITSM) integration, third-party IP Address Management (IPAM) integration, Cisco StackWise-1T technology
|
|
Compliant Standards
|
IEEE 802.3, IEEE 802.3u, IEEE 802.1D, IEEE 802.1Q, IEEE 802.3ab, IEEE 802.1p, IEEE 802.3af, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.1w, IEEE 802.1x, IEEE 802.1s, IEEE 802.3at
|
|
RAM
|
16 GB
|
|
Flash Memory
|
16 GB
|
|
Status Indicators
|
Status
|
|
Expansion / Connectivity
|
|
Interfaces
|
24 x 1/10/25GBase-X SFP28
|
|
Power
|
|
Power Device
|
Internal power supply
|
|
Power Provided
|
715 Watt
|
|
Voltage Required
|
AC 120/230 V (50/60 Hz)
|
|
Miscellaneous
|
|
Compliant Standards
|
CISPR 22 Class A, CISPR 24, EN 61000-3-2, EN 61000-3-3, EN55024, EN50082-1, EN 61000-6-1, EN 61000-4-4, EN 61000-4-2, EN 61000-4-3, EN 61000-4-6, CCC, ICES-003 Class A, EN 61000-4-5, UL 60950-1, IEC 60950-1, EN 60950-1, RoHS, AS/NZS 3548 Class A, BSMI Class A, VCCI Class A, EN 55022 Class A, FCC CFR47 Part 15 A, EN 300 386, TVCN 7317, VCCI V-3/2009 Class A, CAN/CSA-C22.2 No. 60950-1
|
|
Dimensions & Weight
|
|
Width
|
17.5 in
|
|
Depth
|
16.1 in
|
|
Height
|
1.73 in
|
|
Weight
|
15.0 Pounds
|
|
Manufacturer Warranty
|
|
Service & Support
|
Limited warranty - replacement - lifetime - response time: next business day ¦ Technical support - consulting - 90 days
|
|
Environmental Parameters
|
|
Min Operating Temperature
|
23 °F
|
|
Max Operating Temperature
|
113 °F
|
|
Humidity Range Operating
|
5 - 90% (non-condensing)
|
|
Min Storage Temperature
|
-40 °F
|
|
Max Storage Temperature
|
158 °F
|
|
Humidity Range Storage
|
5 - 90% (non-condensing)
|
