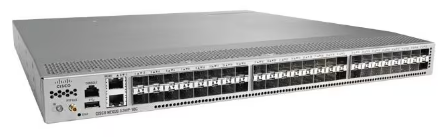

(NEW VENDOR) Cisco Nexus 3524-XL 24 SFP+ ports Switch N3K-C3524P-XL

N3K-C3524P-XL Specifications Physical 24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 portsDual redundant hot-swappable...
Vendor: CISCO
SKU: N3K-C3524P-XL
Availability: In Stock
Product Type: NETWORKING
HKD 69,000.00
HKD 69,000.00
Subtotal: HKD 69,000.00
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

(NEW VENDOR) Cisco Nexus 3524-XL 24 SFP+ ports Switch N3K-C3524P-XL

(NEW VENDOR) Cisco Nexus 3524-XL 24 SFP+ ports Switch N3K-C3524P-XL

HKD 69,000.00

(NEW VENDOR) Cisco Nexus 3524-XL 24 SFP+ ports Switch N3K-C3524P-XL

HKD 69,000.00

N3K-C3524P-XL Specifications

Physical

24 fixed SFP+ ports (1 or 10 Gbps); expandable to 48 ports
Dual redundant hot-swappable power supplies
Four individual redundant hot-swappable fans
One 1-PPS timing port, with the RF1.0/2.3 QuickConnect connector type
One 10/100/1000-Mbps management port
One RS-232 serial console port
Two USB ports
Locator LED
Locator LED button

Performance

480-Gbps switching capacity
Forwarding rate of 360 mpps
Line-rate traffic throughput (both Layer 2 and 3) on all ports
Configurable MTUs of up to 9216 bytes (jumbo frames)

Typical operating power

102W

Maximum power

193W

Typical heat dissipation

348 BTUs per hr

Maximum heat dissipation

658 BTUs per hr

Hardware specifications common to all switches

Mode

Normal mode

Warp mode

Number of MAC addresses

64,000

8000

Number of IPv4 unicast routes

24,000

4000

Number of IPv4 hosts

64,000

8000

Number of IPv4 multicast routes

8000

8000

Number of VLANS

4096

Number of ACL entries

4096

Number of spanning-tree instances

Rapid Spanning Tree Protocol (RSTP): 512

Multiple Spanning Tree (MST) Protocol: 64

Number of EtherChannels

24

Number of ports per EtherChannel

24

Buffer size

6 MB shared among 16 ports; 18 MB total

System memory

16 GB

Boot flash memory

16 GB

Number of power supplies

2 (redundant)

Power supply types

AC (forward and reversed airflow)

DC (forward and reversed airflow)

Input voltage

100 to 240 VAC

Frequency

50 to 60 Hz

Power supply efficiency

89 to 91% at 220V

Cooling

Forward and reversed airflow schemes
Forward airflow: Port-side exhaust (air enters through fan tray and power supplies and exits through ports)
Reversed airflow: Port-side intake (air enters through ports and exits through fan tray and power supplies)
Four individual, hot-swappable fans (3+1 redundant)

Dimensions (height x width x depth)

1.72 x 17.3 x 18.38 in. (4.36 x 43.9 x 46.7 cm)

Weight

17.4 lb (7.9 kg)

Operating temperature

32 to 104° F (0 to 40°C)

Storage temperature

-40 to 158° F (-40 to 70°C)

Relative humidity (operating)

10 to85% noncondensing

Up to 5 days at maximum (85%) humidity

Recommend ASHRAE data center environment

Relative humidity (nonoperating)

5 to 95% noncondensing

Altitude

0 to 10,000 ft (0 to 3000m)
