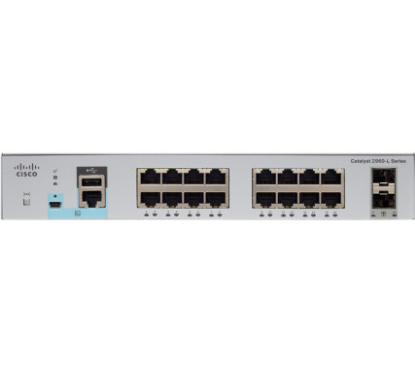

WS-C2960L-16TS-LL 사양 | |
구성 | |
10/100/1000 이더넷 포트 | 16 |
업링크 인터페이스 | 2개의 SFP |
사용 가능한 PoE 전원 | 없음 |
팬리스 | 와이 |
치수(높이 x 깊이 x 너비) | 1.73 x 8.45 x 10.56인치(4.4 x 21.5 x 26.8cm) |
순중량 | 4.53파운드(2.06kg) |
콘솔 포트 | |
RJ45 이더넷 | 1 |
USB 미니-B | 1 |
저장 및 Bluetooth 콘솔을 위한 USB-A 포트 | 1 |
메모리 및 프로세서 | |
CPU | ARMv7 800MHz |
음주 | 512메가바이트 |
플래시 메모리 | 256MB |
성능 | |
전달 대역폭 | 18Gbps |
| 36Gbps |
전달 속도(64바이트 L3 패킷) | 26.78Mpps(초당 78회) |
유니캐스트 MAC 주소 | 8K |
최대 활성 VLAN | 64 |
사용 가능한 VLAN ID | 4094 |
최대 STP 인스턴스 | 64 |
최대 SPAN 세션 | 1 |
MTU-L3 패킷 | 9198바이트 |
점보 이더넷 프레임 | 10,240바이트 |
MTBF(시간) (데이터) | 2,416,689 |
MTBF(시간) (PoE) | 313,496 |
환경 | |
작동 온도 | |
최대 5,000피트 | 화씨 23도에서 113도(섭씨 -5도에서 45도) |
최대 10,000피트 | 화씨 23도에서 104도(섭씨 -5도에서 40도) |
작동 고도 | 10,000피트(3000m) |
작동 상대 습도 | 40ºC에서 5%~90% |
보관 온도 | -25°~70°C(-13°~158°F) |
보관 고도 | 15,000피트(4500m) |
보관 상대 습도 | 65ºC에서 5% ~ 95% |
보관 고도 | 냉간 시동을 위한 최소 주변 온도는 0°C(32°F)입니다. |
전기 같은 | 데이터 |
전압(자동 범위 조정) | 110~220V AC |
빈도 | 50~60Hz |
현재의 | 0.16A ~ 0.26A |
전력 정격 (최대 소비량) | 0.05킬로와트 |
전력 소비량(와트) 0% 트래픽 10% 트래픽 100% 트래픽 가중 평균 |
14.9 19.3 19.3 17.8 |
안전 및 규정 준수 | |
안전 | UL 60950-1 2판, CAN/CSA-C22.2 번호60950-1 2판, EN 60950-1 2판, IEC 60950-1 2판, AS/NZS 60950-1 |
EMC: 방출 | 47CFR Part 15(CFR 47) 클래스 A, AS/NZS CISPR22 클래스 A, CISPR22 클래스 A, EN55022 클래스 A, ICES003 클래스 A, VCCI 클래스 A, EN61000-3-2, EN61000-3-3, KN22 클래스 A, CNS13438 클래스 A |
EMC: 면역성 | EN55024, CISPR24, EN300386, KN24 |
환경 | 유해 물질 감소(RoHS) 지침 2011/65/EU 포함 |
통신사 | 공통 언어 장비 식별자(CLEI) 코드 |
미국 정부 인증 | USGv6 및 IPv6 준비 로고 |
커넥터 및 인터페이스 | |
이더넷 인터페이스 | 10BASE-T 포트: RJ-45 커넥터, 2쌍 카테고리 3, 4 또는 5 비차폐 꼬임 쌍(UTP) 케이블링 |
100BASE-TX 포트: RJ-45 커넥터, 2쌍 카테고리 5 UTP 케이블링 | |
1000BASE-T 포트: RJ-45 커넥터, 4쌍 카테고리 5 UTP 케이블링 | |
1000BASE-T SFP 기반 포트: RJ-45 커넥터, 4쌍 카테고리 5 UTP 케이블링 | |
표시 LED | 포트별 상태: 링크 무결성, 비활성화, 활동, 속도 및 풀 듀플렉스 |
시스템 상태: 시스템, PoE 및 링크 속도 | |
콘솔 케이블 | CAB-CONSOLE-RJ45 RJ-45가 있는 6피트 콘솔 케이블 |
CAB-CONSOLE-USB USB Type A 및 mini-B 커넥터가 있는 6피트 콘솔 케이블 | |
힘 | 제공된 AC 전원 코드를 사용하여 AC 전원 커넥터를 AC 전원 콘센트에 연결합니다. |
