New-Generation 2U 2-Socket Rack Server

• FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads.

• The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

New-Generation 2U
2-Socket Rack Server

Main application scenarios:

SDS VDI CDN Virtualization Big data Database Cloud scenarios AI inference Small businesses OA Web application

• FusionServer 2288H V7 (2288H V7) is a new-generation 2U 2-socket rack server designed for SDS, VDI, CDN, virtualization, big data, database, cloud scenarios, AI inference, small enterprises, OA, and web applications, meeting requirements of enterprise or telecom service applications and other complex workloads.

• The 2288H V7 features low power consumption, high scalability and reliability, easy deployment, and simplified management.

Robust Performance

Up to 50% Better Overall Performance

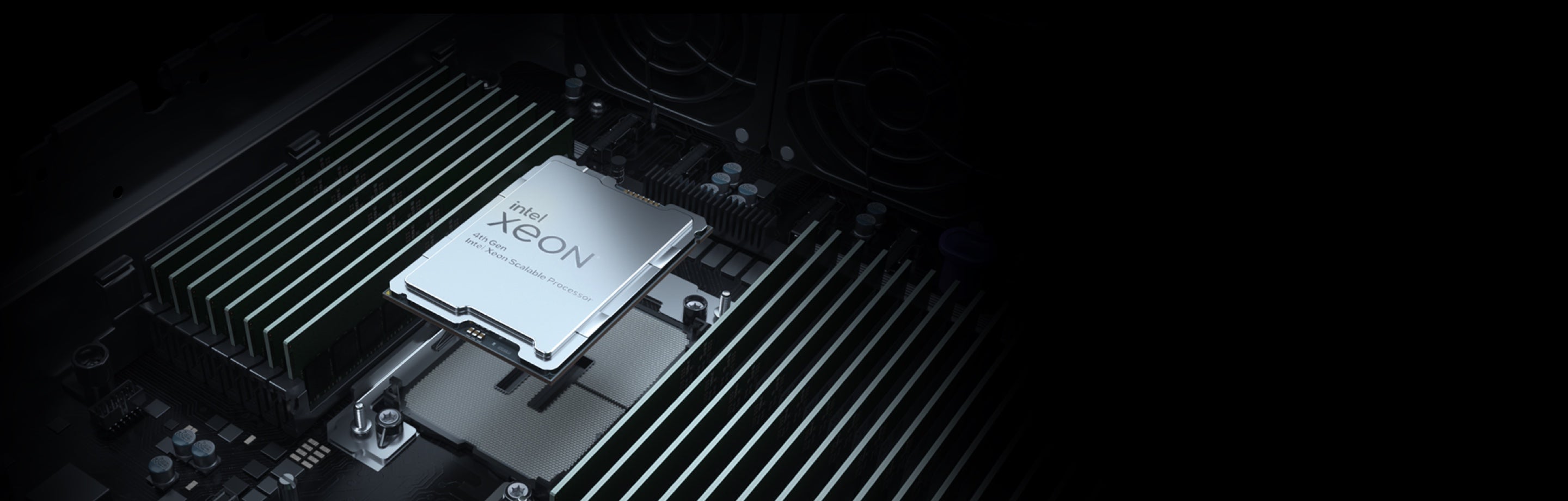

4th or 5th Gen Intel^® Xeon^® Scalable processors with 385 W TDP per processor,
and 32 x DDR5 DIMMs, scalable to 48 x DIMM slots through CXL

100% Higher PCIe Bandwidth for High-Speed Interconnection

PCIe 5.0 protocol and 17 x standard PCIe slots ensure flexible configuration

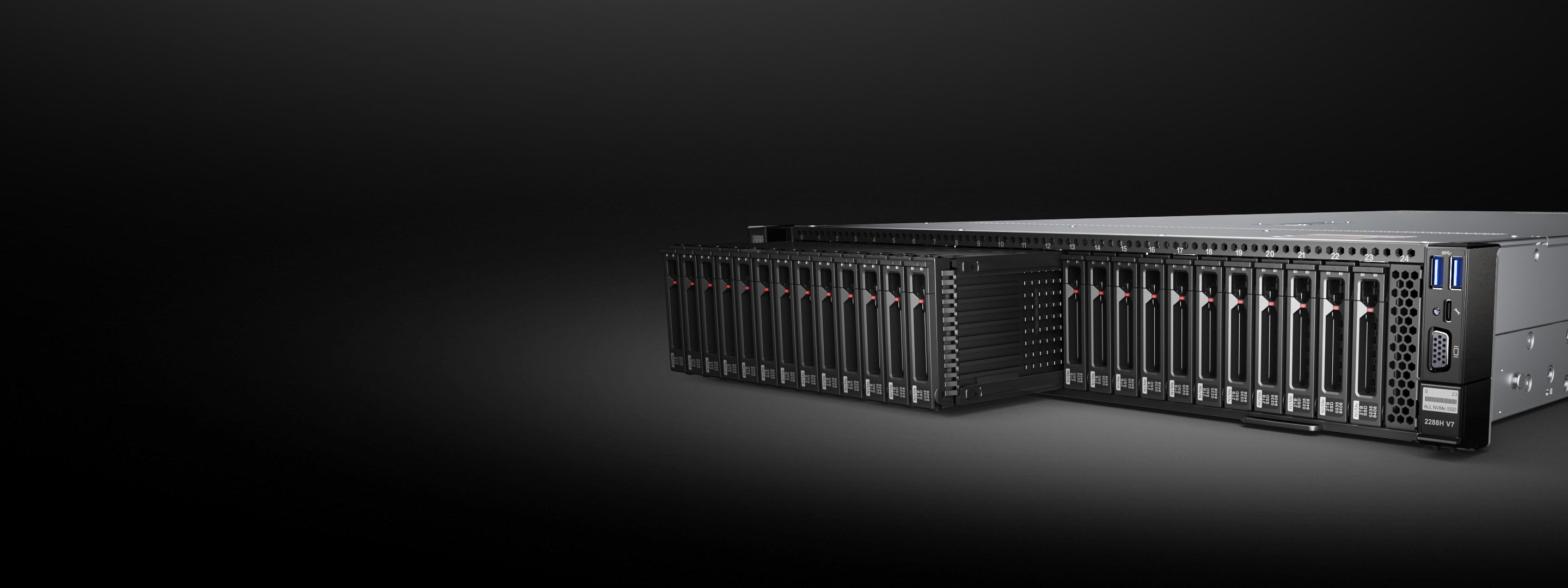

34 x NVMe U.2 SSDs

High-speed flash for high performance

36 x E1.S SSDs

Smaller size, higher density

45 x SAS/SATA SSDs

More slots, more cost-effective

High Reliability and Security

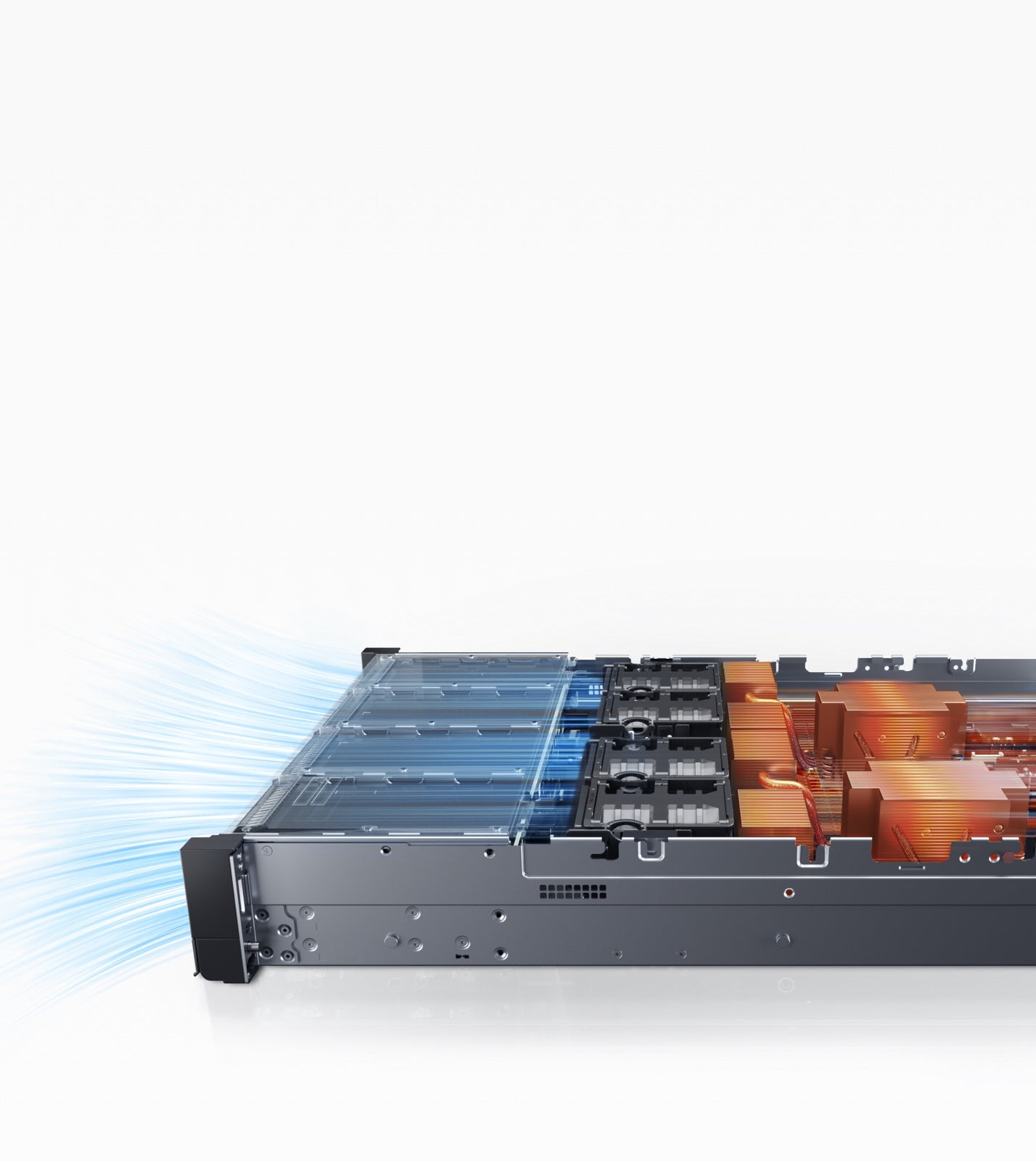

50% Better Heat Dissipation Capability Than a Single Heat Sink

Heat pipe remote heat dissipation technology ensures reliable heat dissipation and stronger temperature adaptation

66% Less System Downtime

Unique AI memory fault self-healing ensures stable system running

Efficient Energy Saving

Saving Energy by up to 8% Compared with the Industry Average

The unique algorithm is provided for the lowest power consumption of fans and CPUs

Intelligent Service Awareness, Dynamic Load Adjustment

The CPU working frequency is dynamically adjusted based on the actual service load

Industry-leading Power Supply Technology for Higher Efficiency

Three core technologies improve power and efficiency, enabling the industry-leading power conversion rate and the power loss 12.5% lower than the industry average

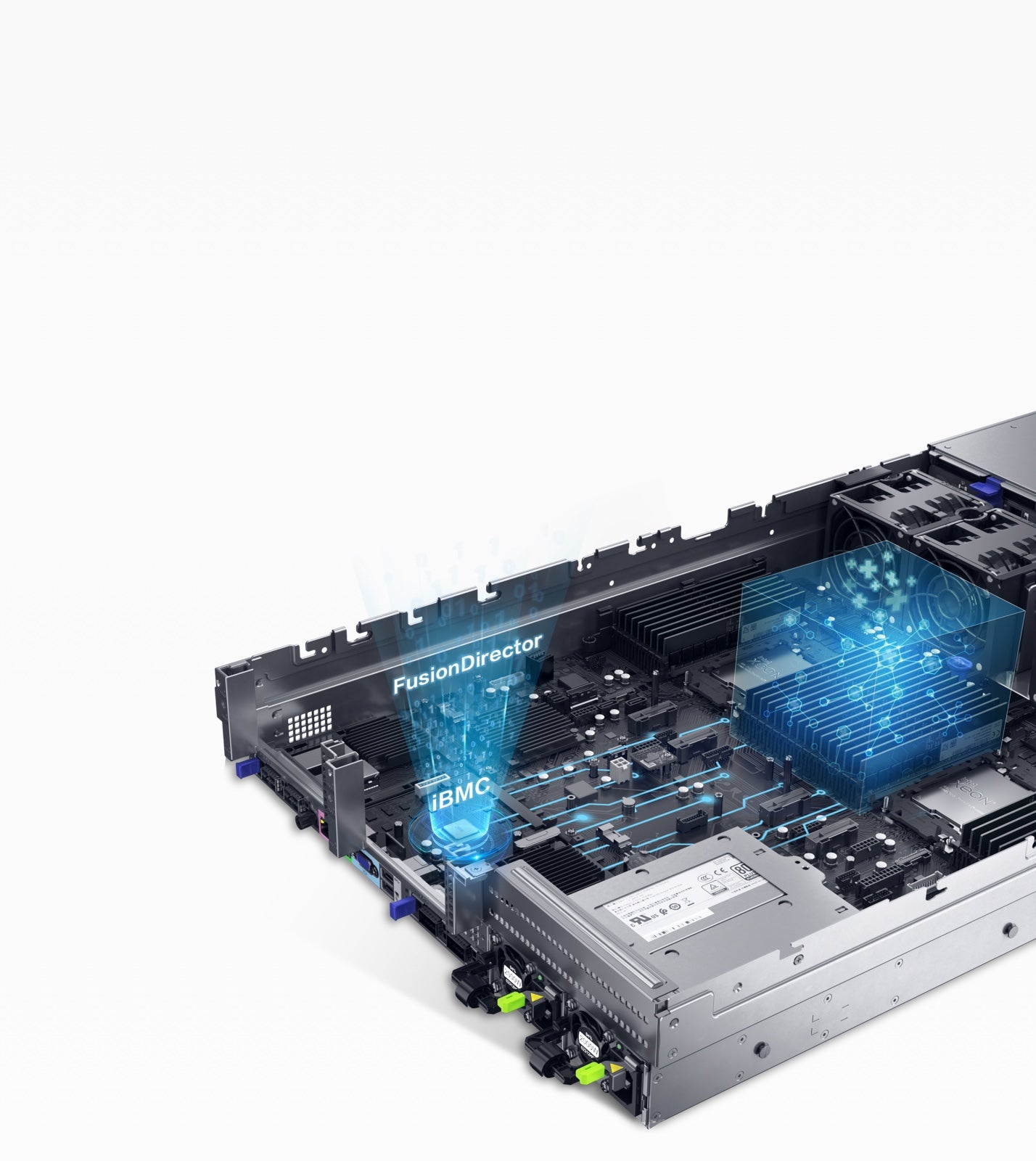

Intelligent O&M

20x Higher Upgrade Efficiency

Automatic version push and upgrades can be completed without onsite attendance

10x Higher Deployment Efficiency

75% streamlined deployment steps are performed by tools

100% Accuracy for Asset Stocktaking

Supports takeover of all vendors' servers, automatic asset location identification, and real-time tracking

Technical Specifications

Technical Specifications

Form Factor

2U rack server

Title

Processor

1 or 2 x 4th or 5th Gen Intel^® Xeon^® Scalable processors with TDP up to 385 W per processor

Title

Chipset

Emmitsburg PCH

Title

Memory

32 x 5600 MT/s DDR5 DIMMs and 16 x DDR5 or DDR4 DIMMs supported by the CXL technology; up to 48 x DIMMs*

Title

Local Storage

Hot-swappable drives with the following configuration options are supported:

• 8 to 35 x 2.5ʺ SAS/SATA/SSD drives

• 12 to 20 x 3.5ʺ SAS/SATA drives

• 4/8/16/24 x NVMe SSDs

• 36 x E1.S SSDs*

• Up to 45 x 2.5ʺ drives, or 34 x full NVMe SSDs

• 2 x M.2 SSDs, hardware RAID, and hot swap

Title

RAID

RAID 0, 1, 10, 1E, 5, 50, 6, or 60; optional supercapacitor for cache data power failure protection, RAID level migration, drive roaming, self-diagnosis, and remote web-based configuration

Title

Network

Expansion capability of multiple types of networks

OCP 3.0 NICs are supported. Both two FlexIO card slots support two OCP 3.0 NICs, which can be configured as required. Hot swap is supported

Title

PCIe Expansion

Up to 19 x PCIe slots: 2 x FlexIO slots dedicated for OCP 3.0 NICs and 17 x standard PCIe expansion slots, 14 slots of which support PCIe 5.0

Title

GPU Card

4 x dual-width or 14 x single-width GPU cards

Title

Fan Module

4 x hot-swappable counter-rotating fans in N+1 redundancy

Title

Power Supply

900 W/1200 W/1500 W/2000 W/3000 W Platinum/Titanium hot-swappable PSUs in 1+1 redundancy

Title

Management

The iBMC chip integrates one dedicated management GE network port, providing comprehensive management features such as fault diagnosis, automatic O&M, and hardware security hardening

• The iBMC supports standard interfaces such as Redfish, SNMP, and IPMI 2.0, provides a remote management interface based on HTML5/VNC KVM, and supports out-of-band management functions such as monitoring, diagnosis, configuration, Agentless, and remote control for simplified management

• It is optional to configure the FusionDirector management software that provides advanced management features such as five intelligent technologies and realizes intelligent, automated, visualized, and refined management throughout the lifecycle

Title

OS

FusionOS, Microsoft Windows Server, SUSE Linux Enterprise Server, VMware ESXi, Red Hat Enterprise Linux, CentOS, Oracle, Ubuntu, Debian, and openEuler

Title

Security

Power-on password, administrator password, Trusted Platform Module (TPM) 2.0, security bezel, secure boot, and chassis intrusion detection

Title

Operating Temperature

5ºC to 50ºC (41ºF to 122ºF), compliant with ASHRAE Classes A1, A2, A3, and A4

Title

Certification

CE, UL, CCC, FCC, VCCI, and RoHS

Title

Installation Suite

L-shaped guide rails, adjustable guide rails, and holding rails
