(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance - C2 Computer
(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance - C2 Computer

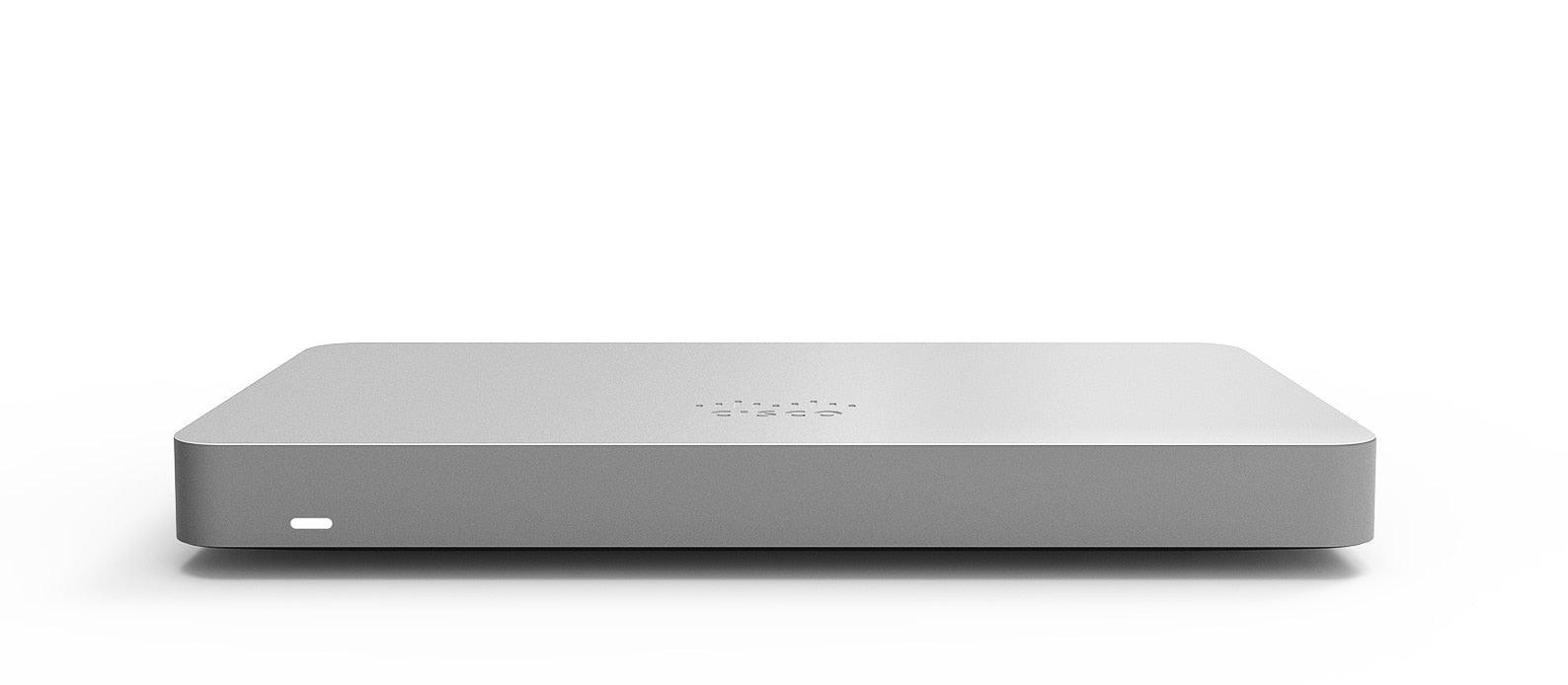

(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance

(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance   Features   Managed via Cisco Meraki Dashboard Automatic Firmware...
Vendor: CISCO
SKU: MX67-HW
Availability: In Stock
Product Type: NETWORKING-ROUTER
HKD 0.00
HKD 0.00
Subtotal: HKD 0.00
  • Visa
  • Mastercard
  • American Express
  • Apple Pay
  • PayPal
10 customers are viewing this product

Free Shipping

Free standard shipping on orders over $99

Estimated to be delivered on 12/01/2022 - 15/10/2022.

Free Returns

Learn More.

Built And Shipped Within 5 - 7 Bussiness Days

(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance - C2 Computer

(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance

HKD 0.00
(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance - C2 Computer

(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance

HKD 0.00
Description

(NEW VENDOR) CISCO MERAKI MX67-HW MX67 Router/Security Appliance




Features

  • Managed via Cisco Meraki Dashboard

  • Automatic Firmware upgrades

  • WAN Link Balancing

  • Automatic WAN Failover

  • SD-WAN over Meraki AutoVPN

  • L3/L7 Stateful Firewall

  • Geo based firewall rules

  • 1:1 and 1:Many NAT

  • Configurable VLANs / DHCP support

  • Static Routing

  • Client VPN endpoint

  • Meraki AutoVPN and L2TP/IPSec VPN endpoint

  • Active Directory integration

  • Content Filtering

  • Malware Protection (AMP) w/ optional Threat Grid integration

  • IDS/IPS protection

  • Custom Traffic Shaping

  • Historical Client Usage statistics

  • Netflow support

  • Syslog integration

  • Remote Packet Capture tools

Hardware Features

  • Dual WAN uplinks

  • Built-in Cellular CAT 6 LTE Uplink (Cellular models only, requires SIM card)

  • Built-in 802.11ac Wireless capability (Wireless models only)

  • Built-in PoE+ capabilities (MX68 only)






Context and Comparisons

  MX64 MX65 MX67 MX68
Dual WAN Uplinks Yes (With LAN conversion) Yes Yes (With LAN conversion) Yes
Cellular Uplink Via 3rd Party USB Modem Via 3rd Party USB Modem Built-in (Cellular models only), Via 3rd Party USB Modem Built-in (Cellular Models Only), Via 3rd Party USB Modem
Stateful Firewall Throughput 250 Mbps 250Mbps 600 Mbps 600 Mbps
Maximum VPN Throughput 100 Mbps 100Mbps 300 Mbps 300 Mbps
Security Throughput 200 Mbps 200 Mbps 300 Mbps 300 Mbps
PoE Capabilities  No Yes, 2x GbE RJ45 LAN Ports No Yes, 2x GbE RJ45 LAN Ports
Recommended use case Small branch with
up to 50 users		 Small branch with
up to 50 users		 Small branch with
up to 50 users		 Small branch with
up to 50 users



Technical Breakdown

WAN Interface

MX67 / W MX67C MX68 / W MX68CW

1x Dedicated GbE RJ45

1x Convertible LAN GbE RJ45

1x Dedicated GbE RJ45

1x Convertible LAN GbE RJ45

 2x Dedicated GbE RJ45 2x Dedicated GbE RJ45
Cellular Uplink via 3rd Party USB Modem Built-in Cellular Uplink or 3rd Party USB Modem Cellular Uplink via 3rd Party USB Modem Built-in Cellular Uplink or 3rd Party USB Modem



LAN Interface

MX67 / C / W MX68 / W / CW
3x Dedicated GbE RJ45 10x Dedicated GbE RJ45
1x Convertible LAN/WAN GbE RJ45 2x Dedicated GbE RJ45 PoE+



802.11 Wireless Interface

  MX67W MX68W / CW
Radio Information

802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO

802.11a/b/g/n/ac Wave 2 (2.4 or 5Ghz) 2x2 MU-MIMO
Antennas  2 x 2 MU-MIMO with two spatial streams 2 x 2 MU-MIMO with two spatial streams
Maximum Data Rate 1.3 Gbps 1.3 Gbps

NOTE: The MX68CW has fixed antennas that serve both 802.11 and LTE connectivity and cannot be removed.



Cellular Interface

When bringing the units online for the very first time, MX67C/68CW units should be connected via a wired WAN interface to the Meraki Dashboard to retrieve an update to allow for proper use of the integrated cellular connectivity.



   US / North America Bands Worldwide Bands
HSPA+ 2, 4, 5 1, 3, 5/6, 8
FDD-LTE 2, 4, 5(*), 12/17, 13, 29 1, 3, 7, 8, 20, 26/5, 28A, 28B
TDD-LTE - 34, 39, 40, 41/38
TD-SCDMA Bands - 34 (Band A), 39 (Band F)
GSM Bands 850, 900, 1800, 1900 900, 1800
CA 2xDL-CA up to 40Mhz: 2+17, 4+17, 2+29, 4+29, 4+5, 2+5 2xDL-CA up to 40Mhz: 3+20, 3+8, 7+20, 1+8, 1+5, 3+5
Certifications PTCRB (US) RCM (ANZ, APAC), GCF (EU)
Tested Carriers Verizon, AT&T, Bell Canada, T-Mobile, Telus, Rogers Orange, Telia, Telecom Italia, Telenor, Telefonica, Post, BT, STC, NTT docomo, Telstra, Optus, Spark NZ, Vodafone NZ, SingTel

Carrier compatibility is generally based on having compatible bands on the modem. In the open market, carriers may only require regulatory domain certifications and open market certifications, like the PTCRB and GCF, to be compatible for their network. Sometimes carriers will require additional testing before a device can be used on their network. The section Tested Carriers is based on Meraki device certifications being approved by those specific carriers. A carrier being listed above means that they have officially certified the Meraki product for their cellular network. There maybe many unlisted carriers could be functionally compatible with Meraki devices. The list of tested certified carriers is based on the carrier validating Meraki per their network parameter requirements. If a carrier you are looking to use is not listed above, it could be that they do not require additional compliance testing for their network.



Throughput and Capabilities

  MX67 / C / W MX68 / W / CW
Recommended Use Case Small branch with
up to 50 users		 Small branch with
up to 50 users
Max Stateful Firewall Throughput in NAT mode 600 Mbps 600 Mbps
Max VPN Throughput 300 Mbps 300 Mbps

Max Concurrent VPN Tunnels (Site-to-Site or Client VPN)

 50 50



Physical

  MX67  MX67W MX67C MX68 MX68W MX68CW
Mount Type Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount Desktop / Wall Mount

Dimensions

(h x d x w)

1.1 x 5.1 x 9.4 in /

27 x 130 x 239 mm

1.1 x 6.5 x 9.4 in /

27 x 164 x 239 mm

1.1 x 6.9 x 9.4 in /

27 x 176 x 239 mm

1.1 x 5.8 x 11.2 in /

27 x 148 x 284 mm

1.1 x 6.8 x 11.2 in /

27 x 172 x 284 mm

1.1 x 7.0 x 11.2 in /

27 x178 x 284 mm
Weight 1.74 lb / 0.79 kg 1.84 lb / 0.83 kg 1.87 lb / 0.85 kg 2.46 lb / 1.12 kg 2.55 lb / 1.16 kg 2.61 lb / 1.18 kg
Power Supply 18W DC 18W DC 18W DC 100W DC 100W DC 100W DC
Power Load (idle/max) 5W / 14W 15W / 23W 6W / 17W 11W / 79W 19W / 87W 19W / 89W
Operating Temperature

32°F - 113°F

0°C - 45°C

32°F - 113°F

0°C - 45°C

32°F - 113°F

0°C - 45°C

32°F - 104 °F

0°C - 40°C

32°F - 104 °F

0°C - 40°C

32°F - 104 °F

0°C - 40°C
Humidity 5% to 95% 5% to 95% 5% to 95% 5% to 95% 5% to 95% 5% to 95%



Accessories

Accessory Description
MA-PWR-30WAC Meraki MX Replacement Power Adapter (MX64, MX67) (30 Watts AC)
MA-PWR-90WAC Meraki MX Replacement Power Adapter (MX65) (90 Watts AC)
MA-PWR-100WAC Meraki MX Replacement Power Adapter (MX68 / 68W / 68CW) (100 Watts AC)
MA-ANT-MX One pair of external dual-band dipole 802.11 antennas for MX64W / 65W / 67W / 68W (Connector type: RP-SMA)
MA-PWR-CORD-US 1x AC Power Cable, US plug
MA-PWR-CORD-EU 1x AC Power Cable, EU plug
MA-PWR-CORD-UK 1x AC Power Cable, UK plug
MA-PWR-CORD-AU 1x AC Power Cable, AU plug

NOTE: The MX68CW has fixed antennas that serve both 802.11 and LTE connectivity and cannot be removed.
