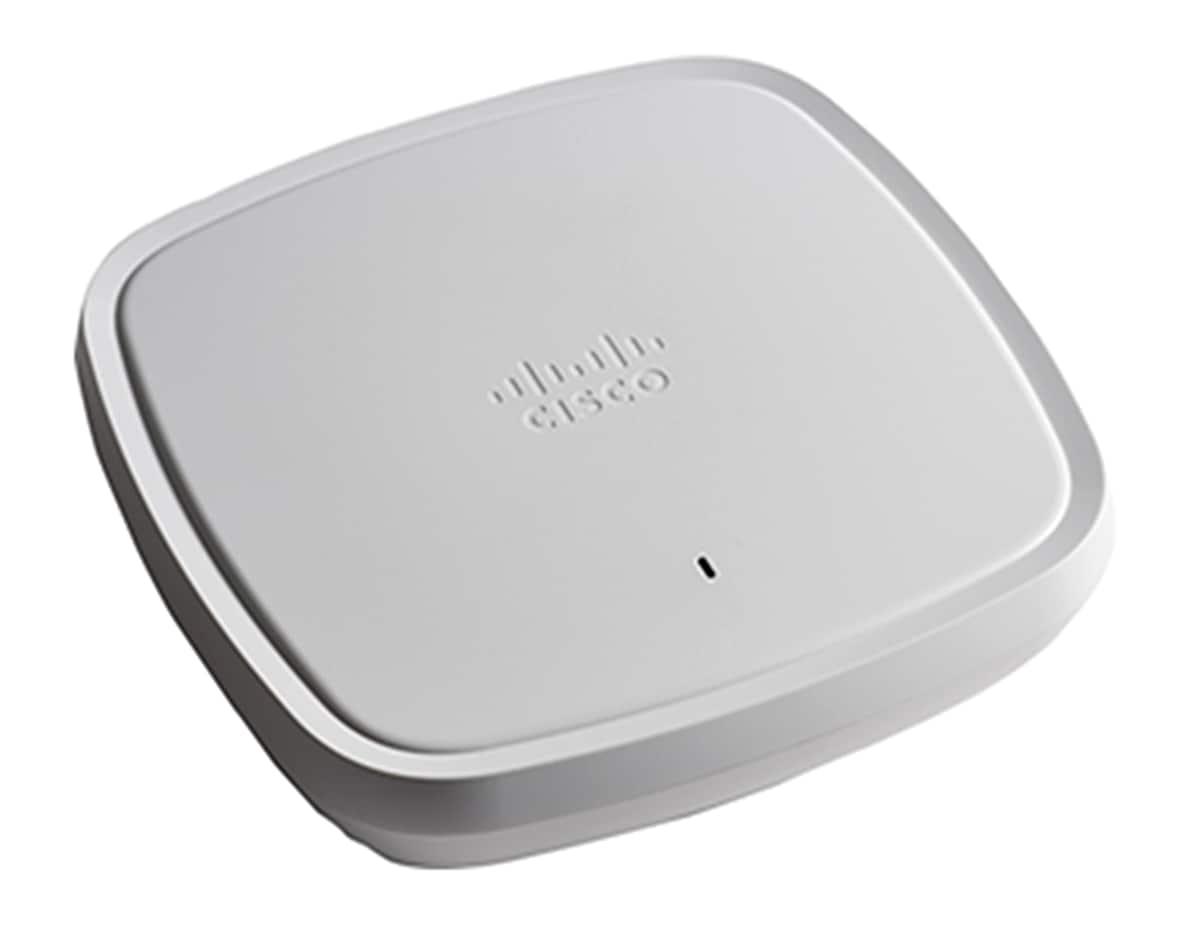

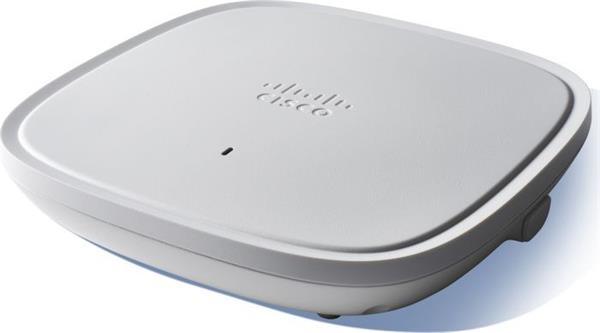

(NEW VENDOR) CISCO C9130AXI-S Catalyst 9130AX Series

C9130AXI-S Specification

Software

Catalyst 9130AXI

• Cisco Unified Wireless Network Software Release 8.10.x or later

• Cisco IOS ^® XE Software Release 16.12.1 with AP Device Pack, or later

Supported wireless LAN controllers

• Cisco Catalyst 9800 Series Wireless Controllers

• Cisco 3504, 5520, and 8540 Wireless Controllers and Cisco Virtual Wireless Controller

802.11n version 2.0 (and related) capabilities

• 4x4 MIMO with four spatial streams

• Maximal Ratio Combining (MRC)

• 802.11n and 802.11a/g

• 20- and 40-MHz channels

• PHY data rates up to 1.5 Gbps (40 MHz with 5 GHz and 20 MHz with 2.4 GHz)

• Packet aggregation: Aggregate MAC Protocol Data Unit (A-MPDU) (transmit and receive), Aggregate MAC Service Data Unit (A-MSDU) (transmit and receive)

• 802.11 Dynamic Frequency Selection (DFS)

• Cyclic Shift Diversity (CSD) support

802.11ac

• 8x8 downlink MU-MIMO with eight spatial streams

• MRC

• 802.11ac beamforming

• 20-, 40-, 80-, and 160-MHz channels

• PHY data rates up to 6.9 Gbps (160 MHz with 5 GHz)

• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

• 802.11 DFS

• CSD support

• WPA3 support

802.11ax

• 8x8 uplink/downlink MU-MIMO with eight spatial streams

• Uplink/downlink OFDMA

• TWT

• BSS coloring

• MRC

• 802.11ax beamforming

• 20-, 40-, 80-, and 160-MHz channels

• PHY data rates up to 10 Gbps (160 MHz with 5 GHz and 20 MHz with 2.4 GHz)

• Packet aggregation: A-MPDU (transmit and receive), A-MSDU (transmit and receive)

• 802.11 DFS

• CSD support

• WPA3 support

Integrated antenna

• 2.4 GHz: Peak gain 4 dBi, internal antenna, omnidirectional in azimuth

• 5 GHz: Peak gain 6 dBi, internal antenna, omnidirectional in azimuth

External antenna with Smart antenna connector

• The Cisco Catalyst 9130AXE Access Point is certified for use with antenna gains up to 13 dBi (2.4 GHz and 5 GHz)

• Cisco offers the industry's broadest selection of antennas, delivering optimal coverage for a variety of deployment scenarios

• Supports Self-Identifiable Antennas (SIA) on the Smart antenna connector

• Smart antenna connector is a compact multi-RF connector with 8-DART interface

• Requires the AIR-CAB002-D8-R= 2-fppt smart antenna connector when used with antennas with a RP-TNC connector

• Requires the AIR-CAB003-D8-N= 3 ft smart antenna connector when used with AIR-ANT2513P4M-N= antenna

Interfaces

• 1x 100, 1000, 2500, 5000 Multigigabit Ethernet (RJ-45) – IEEE 802.3bz

• Management console port (RJ-45)

• USB 2.0 at 4.5W (enabled via future software)

Indicators

• Status LED indicates boot loader status, association status, operating status, boot loader warnings, and boot loader errors

Dimensions (W x L x H)

• Access point (without mounting brackets):

- C9130AXI: 8.9 x 8.9 x 1.88 in. (22.6 x 22.6 x 4.8 cm)

Environmental

Cisco Catalyst 9130AXI

• Nonoperating (storage) temperature: -22° to 158°F (-30° to 70°C)

• Nonoperating (storage) altitude test: 25˚C, 15,000 ft (4600 m)

• Operating temperature: 32° to 122°F (0° to 50°C)

• Operating humidity: 10% to 90% (noncondensing)

• Operating altitude test: 40˚C, 9843 ft (3000 m)

Note: When the ambient operating temperature exceeds 40°C, the access point will shift from 8x8 to 4x4 on the 5 GHz radio, uplink Ethernet will downgrade to 1 Gigabit Ethernet; however, the USB interface will remain enabled.

System memory

• 2048 MB DRAM

• 1024 MB flash

Warranty

Limited lifetime hardware warranty

Available transmit power settings

2.4 GHz

• 23 dBm (200 mW)

• 20 dBm (100 mW)

• 17 dBm (50 mW)

• 14 dBm (25 mW)

• 11 dBm (12.5 mW)

• 8 dBm (6.25 mW)

• 5 dBm (3.13 mW)

• 2 dBm (1.56 mW)

• -1 dBm (0.79 mW)

• -4 dBm(0.39 mW)

5 GHz

• 26 dBm (400 mW)

• 23 dBm (200 mW)

• 20 dBm (100 mW)

• 17 dBm (50 mW)

• 14 dBm (25 mW)

• 11 dBm (12.5 mW)

• 8 dBm (6.25 mW)

• 5 dBm (3.13 mW)

• 2 dBm (1.56 mW)

• -1 dBm (0.79 mW)

Maximum number of nonoverlapping channels

2.4 GHz

• 802.11b/g:

- 20 MHz: 3

• 802.11n:

- 20 MHz: 3

• 802.11ax:

- 20 MHz: 3

5 GHz

• 802.11a:

- 20 MHz: 26 FCC, 16 EU

• 802.11n:

- 20 MHz: 26 FCC, 16 EU

- 40 MHz: 12 FCC, 7 EU

• 802.11ac/ax:

- 20 MHz: 26 FCC, 16 EU

- 40 MHz: 12 FCC, 7 EU

- 80 MHz: 5 FCC, 3 EU

- 160 MHz 2 FCC, 1 EU

Note: This varies by regulatory domain. Refer to the product documentation for specific details for each regulatory domain.

Compliance standards

• Safety:

- IEC 60950-1

- EN 60950-1

- UL 60950-1

- CAN/CSA-C22.2 No. 60950-1

- AS/NZS60950.1

- UL 2043

- Class III equipment

• Emissions:

- CISPR 32 (rev. 2015)

- EN 55032 (rev. 2012/AC:2013)

- EN 55032 (rev. 2015)

- EN61000-3-2 (rev. 2014)

- EN61000-3-3 (rev. 2013)

- KN61000-3-2

- KN61000-3-3

- AS/NZS CISPR 32 Class B (rev. 2015)

- 47 CFR FCC Part 15B

- ICES-003 (rev. 2016 Issue 6, Class B)

- VCCI-CISPR 32

- CNS (rev. 13438)

- KN-32

- QCVN 118:2018/BTTTT

• Immunity:

- CISPR 24 (rev. 2010)

- EN 55024 + AMD 1(rev. 2010)

- EN 55035: 2017

- KN35

• Emissions and immunity:

- EN 301 489-1 (v2.1.1 2017-02)

- EN 301 489-17 (v3.1.1 2017-02)

- QCVN (18:2014)

- QCVN 112:2017/BTTTT

- KN 489-1

- KN 489-17

- EN 60601-1-2:2015

- EN 61000-6-1: 2007

• Radio:

- EN 300 328 (v2.1.1)

- EN 301 893 (v2.1.1)

- AS/NZS 4268 (rev. 2017)

- 47 CFR FCC Part 15C, 15.247, 15.407

- RSP-100

- RSS-GEN

- RSS-247

- China regulations SRRC

- LP0002 (rev 2018.1.10)

- Japan Std. 33a, Std. 66, and Std. 71

• RF safety:

- EN 50385 (rev. Aug 2002)

- ARPANSA

- AS/NZS 2772 (rev. 2016)

- EN 62209-1 (rev. 2016)

- EN 62209-2 (rev. 2010)

- 47 CFR Part 1.1310 and 2.1091

- RSS-102

• IEEE standards:

- IEEE 802.3

- IEEE 802.3ab

- IEEE 802.3af/at

- IEEE 802.11a/b/g/n/ac/ax

- IEEE 802.11h, 802.11d

• Security:

- 802.11i, Wi-Fi Protected Access 2 (WPA2), WPA3

- 802.1X

- Advanced Encryption Standard (AES)

• Extensible Authentication Protocol (EAP) types:

- EAP-Transport Layer Security (TLS)

- EAP-Tunneled TLS (TTLS) or Microsoft Challenge Handshake Authentication Protocol (MSCHAP) v2

- Protected EAP (PEAP) v0 or EAP-MSCHAP v2

- EAP-Flexible Authentication via Secure Tunneling (EAP-FAST)

- PEAP v1 or EAP-Generic Token Card (GTC)

- EAP-Subscriber Identity Module (SIM)
