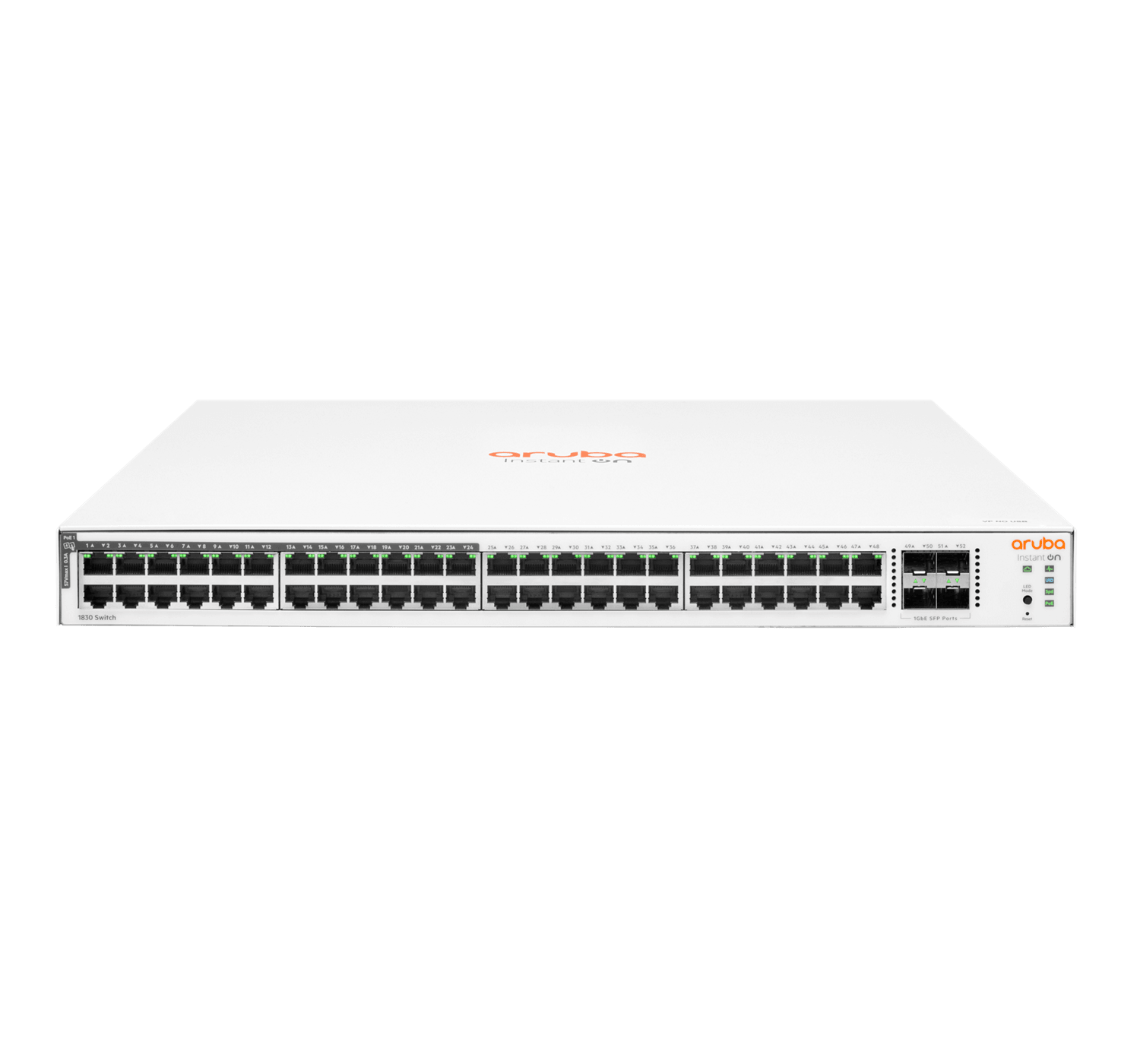

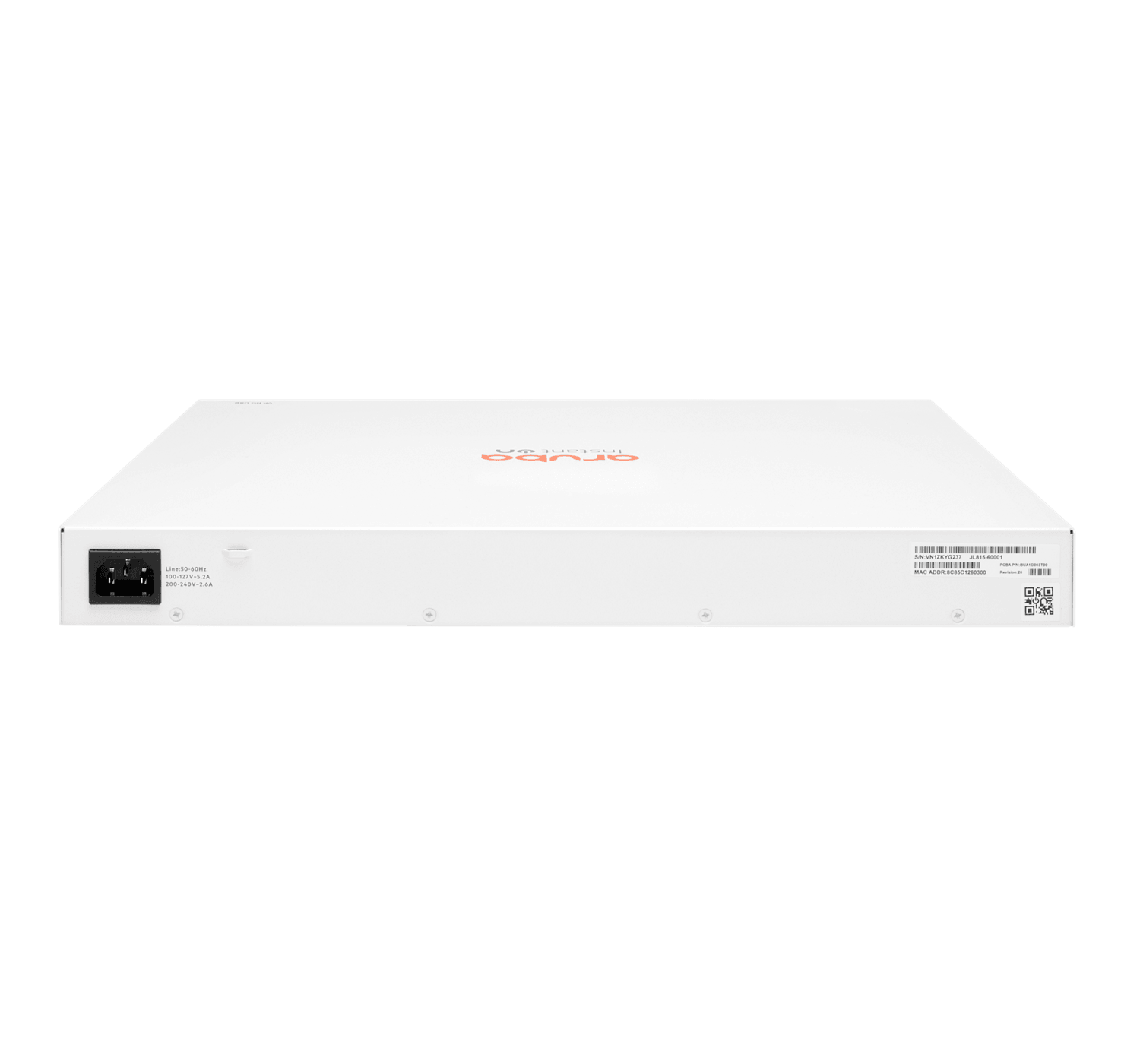

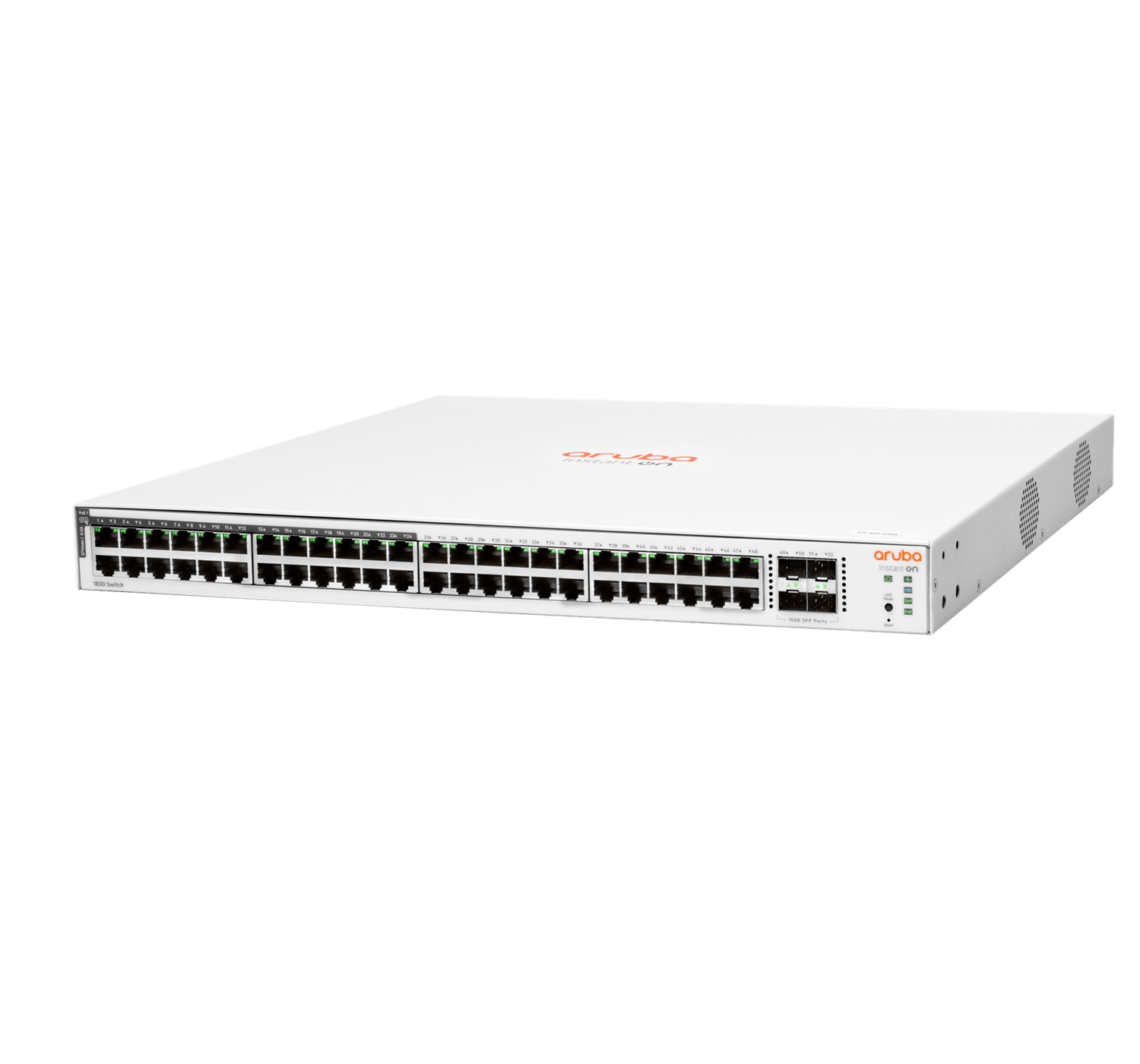

(NEW VENDOR) ARUBA JL815A Aruba Instant On 1830 48G 4SFP 370W Switch

(NEW VENDOR) ARUBA JL815A Aruba Instant On 1830 48G 4SFP 370W Switch

Overview

Aruba Instant On 1830 Switch Series provides an easy to use and affordable wired solution for networks supporting IT, mobile, and cloud applications.
This affordable and easy-to-deploy smart-managed switch series is ideal for small businesses looking for cost-effective wired infrastructure to keep up with evolving network demands. These entry-level, smart-managed switches offer Layer 2 switching capabilities, Gigabit connectivity, along with flexible management modes - all at an affordable price point. With a flexible management dashboard, Power over Ethernet (PoE) options, and energy-efficient features, these switches deliver a solid business network for SMBs with limited budgets.

Features

• Smart-managed Layer 2 Ethernet switch series ready to deploy in 8, 24-, and 48-port for non-PoE and PoE models.
• Compact and fan-less 8-port PoE/ non-PoE models and 24-port non-PoE model for acoustically sensitive environments.
• Aruba Instant On mobile app and/or cloud-based web portal for easy network management onsite or remotely.
• Two (2) and four (4) dedicated 1G SFP fiber ports on 24- and 48-port models respectively to eliminate traffic bottlenecks across your network.
• Option to manage your switches through local web GUI.
• Cost-effective PoE Support: With half of the ports capable of supporting PoE, these switches are ideal for the most cost-efficient environments.

Specifications

Differentiator  Entry-level, smart-managed, Gigabit Layer 2 switches. Easy-to-deploy, secure and affordable switches, designed for small businesses looking for cost-effective solution with evolving networking demands. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1830 switches. Can also manage the device through the local web GUI. This model has 48 10/100/1000 RJ-45 and 4 SFP 1GbE ports, and provides 370 W of Class 4 PoE power.

Power consumption  Maximum: 100-127V: 462.5W 200-220V: 452.5W; Idle: 100-127V: 25.8W 200-220V: 25.4W

Input voltage  100 - 240 VAC

Ports  48 RJ-45 10/100/1000 Class 4 PoE ports, 4 SFP 1GbE ports

Switching capacity  104 Gbps

Throughput  77.37 Mpps

Memory and processor  ARM Cortex-A9 @ 800MHz, 512 MB SDRAM, 256 MB flash; packet buffer: 1.5 MB

PoE capability  370W

Operating Temperature  0-40°C, 0-10,000 ft

Management features  Aruba Instant On Cloud; Web browser; SNMP Manager

Warranty  Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration.

Weight  10.90 lb

Weight  4.94 kg

Minimum dimensions ( H x W x D)  13.82 x 17.44 x 1.73 in

Minimum dimensions ( H x W x D)  35.10 x 44.30 x 4.39 cm
