(NEW VENDOR) ARUBA JL684B Aruba Instant On 1930 24G 4SFP+ 370W Switch
The Aruba Instant On 1930 switch series is designed for small and growing businesses that require enhanced performance to support bandwidth-demanding applications. The Aruba Instant On 1930 switch series seamlessly integrates with existing Instant On indoor/outdoor access points and can be centrally managed with the Instant On mobile app onsite or remotely. These cloud-managed layer 2+ Ethernet switches consist of 8-, 24-, and 48-port Class 4 PoE (i.e. PoE+) and non-PoE Gigabit Ethernet models, with 1G SFP slots on 8-port model and 1G/10G SFP+ slots on 24-/48G models for fiber connectivity.
Specification

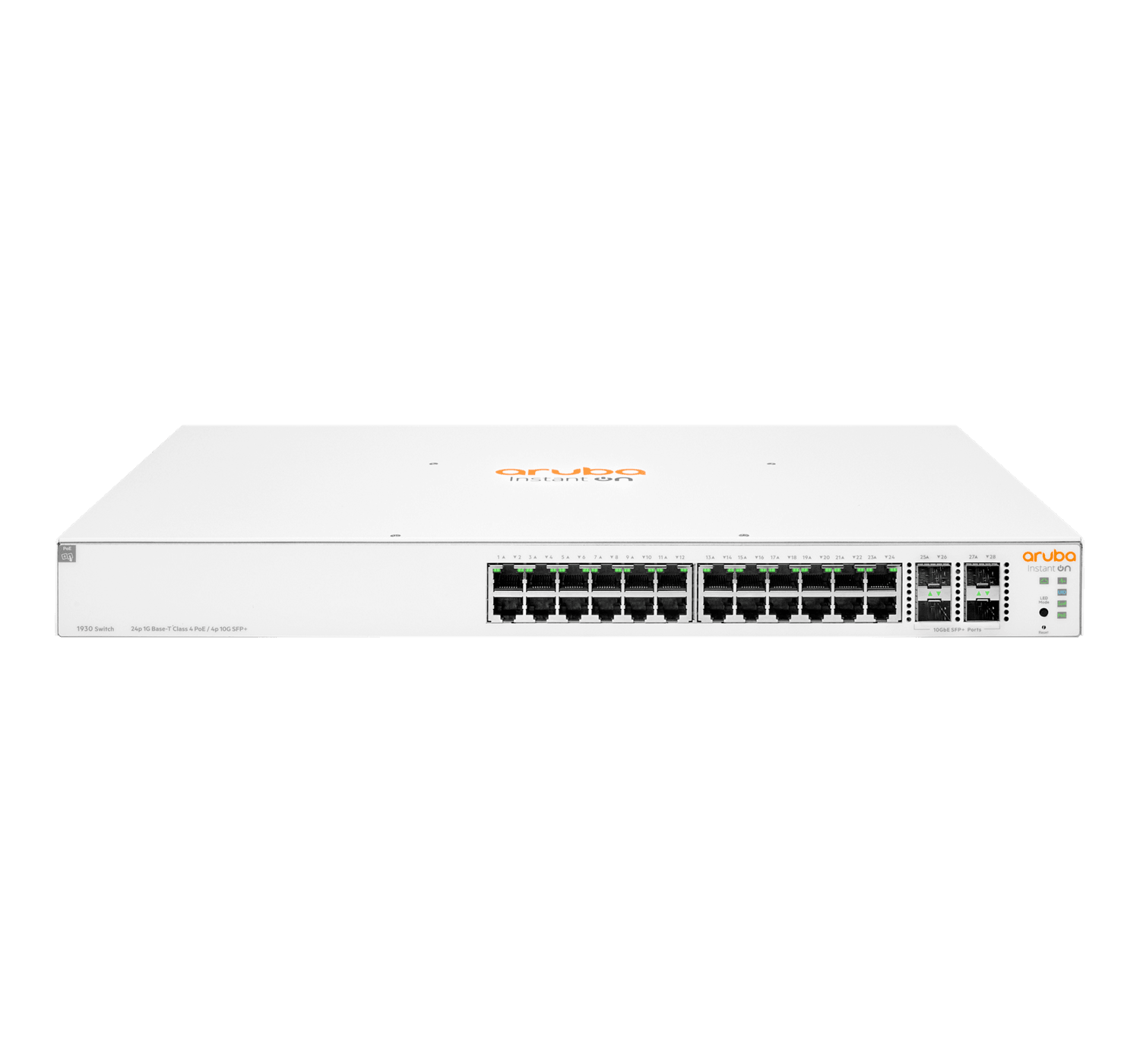

Differentiator Advanced, smart-managed, fixed-configuration Gigabit switches designed for small businesses. Easy-to-deploy, secure and affordable. The first switches with Instant On “anywhere, anytime” configuration and management. Using the Instant On mobile app or the cloud-based web portal, quickly setup, monitor and manage the 1930 switch. Can also choose to manage the device through the local web GUI. This model has 24 10/100/1000 RJ-45 and 4 SFP 1/10GbE ports. Provides 370 W Class 4 PoE power.
Power consumption 490.0 W maximum, 30.0 W idle
Input voltage 100 - 127 / 200 - 240 VAC
Ports 24 RJ-45 10/100/1000 ports, 4 SFP 1/10GbE ports
Switching capacity 128 Gbps
Throughput 95.23 Mpps, maximum
Memory and processor ARM Cortex-A9 @ 800 MHz
512 MB SDRAM, 256 MB flash
1.5 MB packet buffer
PoE capability 370 W Class 4
Management features Aruba Instant On Portal, Web browser, SNMP Manager
Warranty Limited Lifetime Warranty with 24x7 phone support for 90 days and chat support for the entire warranty duration
Weight 8.23 lb
Weight 3.73 kg
Minimum dimensions ( H x W x D) 1.73 x 17.42 x 10.42 in
Minimum dimensions ( H x W x D) 4.39 x 44.25 x 26.47 cm
